TECH SPECS
TRACKMAN iO
Tracking Technology
Optically Enhanced Radar Tracking (OERT) for state-of-the-art accuracy
Radar Sensors
24 GHz ultra-low-power radar for optimal speed and distance measurement
Camera Sensors
Dual camera system:
High-speed (up to 4,600 fps) camera for club and ball tracking — superior angular data and directly measured 3D spin
Patented alignment camera for fast automatic target alignment
Light
Embedded infrared light system (810–850 nm) — no need for any external lighting
Simulator
Indoor optimized
Mount
VESA-compatible hardware for mounting directly on ceiling or drop-down pole
Minimal footprint (30 cm x 30 cm / 1 ft x 1 ft)
Putting
Simulator putting
Processor
Dual Trackman iO processor and PC GPU
Requirements
No minimum space requirements — all you need is enough room to swing a golf club
No markers required on club or ball
Interfaces
Ethernet 10/100/1000 Mbps Base-T / RJ45
Dimensions
333 x 333 x 107 mm
13.1 x 13.1 x 4.2 in
Weight
3.9 kg / 8.6 lb
Alignment
Patented target alignment using built-in camera
Power Consumption
OFF (0.5 W)
IDLE (7 W)
Avg. during use (17 W)
Club Data
Home Complete and Commercial:
Club Speed, Face Angle, Club Path, Face to Path, Impact Height, Impact Offset, Dynamic Loft.
Home:
Club Speed.
Ball Data
Ball Speed, Launch Angle, Launch Direction, Spin Rate, Spin Axis, Hang Time, Height, Curve, Landing Angle, Carry, Side, Total, Side Total, Smash Factor

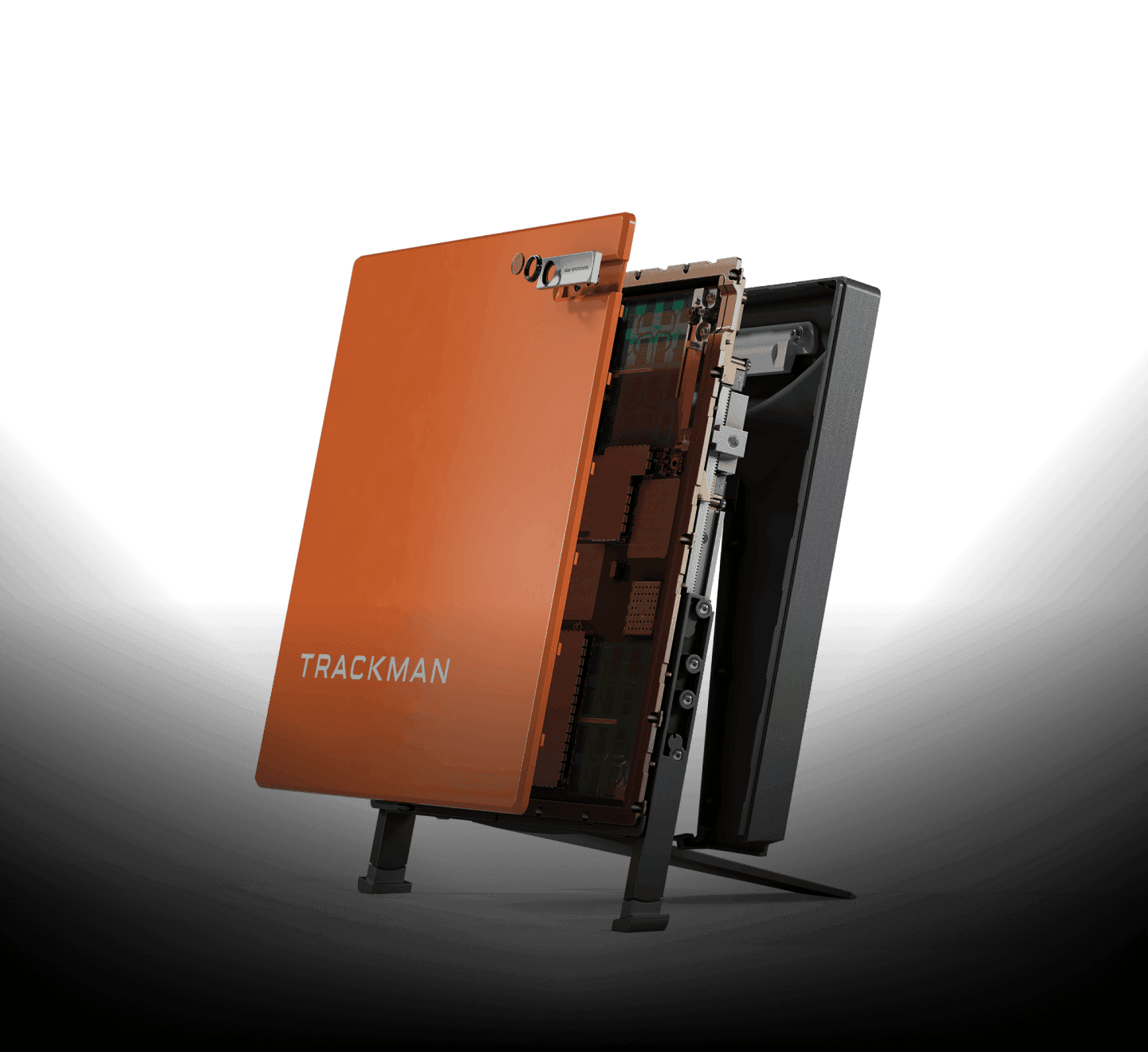

TRACKMAN 4
Tracking Technology
Optically Enhanced Radar Tracking (OERT)
Radar Sensors
Dual Radar systems, synchronized in time and space:
- A short range, ultra high-resolution system, focused on putting, club and impact data
- A long range, high accuracy ball tracking system
Camera Sensors
Radar Syncronized High Speed Optics
Built-In Camera
Radar Syncronized
High Dynamic Range
HD 720p @ 60 fps
Full HD 1080p @ 45 fps
Simulator
Virtual Golf
Putting
Performance Putting
Simulator Putting
Indoor Length Setup
TrackMan to Net
Min. 4.7m (16ft)
Processor
Intel Baytrail
Quad Core 1.9 GHz
WiFi
Dual Band
2.4 + 5 GHz
Interfaces
Micro-USB and Ethernet
Dimensions
300 x 300 x 45 mm
11.8 x 11.8 x 1.8 in
Weight
6.2 lbs / 2.8 kg
Levelling
Auto
Battery
Lithium-ion 10.400 mAh
4+ hours of playtime
Alignment
Patented target alignment using built-in camera
Indoor automatic on-screen target
Club Data
Club Speed, Attack Angle, Dynamic Loft, Club Path, Face Angle, Face to Path, Spin Loft, Swing Plane, Swing Direction, Low Point, Impact Height, Impact Offset, Dynamic Lie, Low Point Side, Low Point Height, Swing Radius, D Plane Tilt
Ball Data
Ball Speed, Smash Factor, Launch Angle, Spin Rate, Launch Direction, Spin Axis, Height, Curve, Landing Angle, Carry, Side, Total, Side Total
Putting Club Data
Club Speed, Backswing Time, Stroke Length, Forward Swing Time, Tempo, Dynamic Lie, Attack Angle, Club Path, Face Angle, Face to Path
Putting Ball Data
Launch Direction, Ball Speed, Skid Distance, Roll Speed, Speed Drop, Roll %, Break, Entry Speed Distance, Total Distance, Side
Putting Green Data
Effective Stimp, Stimp (Flat), Elevation, Slope % side, Slope % rise
